Libre Computer Solitude AML-S905D3-CC AI Single Board Computer

Solitude Pre-CNY inventory is sold out. Fulfillment of units at end of February. Alta is still available.

Libre Computer Solitude AI SBC

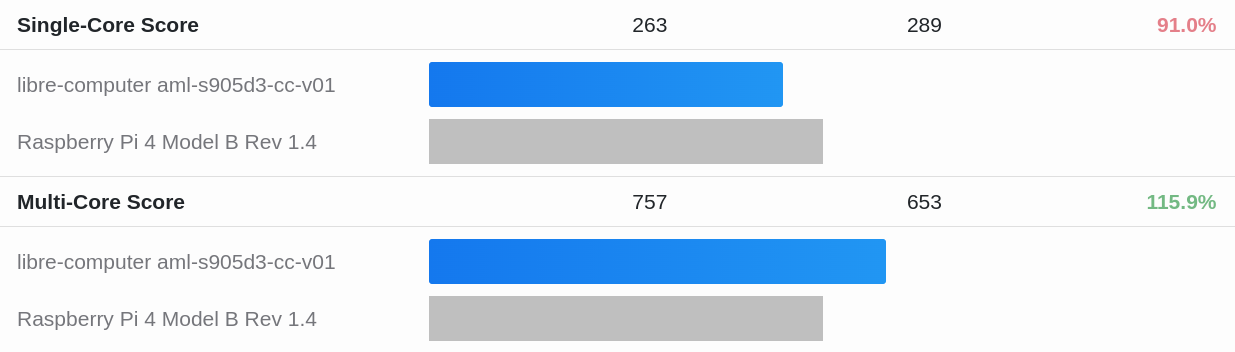

The Solitude platform is designed as a low-power SBC capable of a variety of compute and neuro-AI workloads. It features similiar IO to the Raspberry Pi® Model B series and provides similar performance to the Pi 4 at half the power consumption. The integrated NPU enables heterogeneous compute on uniform memory without the limitations of going over the PCIe bus. Together with Libre Computer's upstream software stack, Solitude is the ideal platform for embedded applications that prioritize cost, power, security, consistency of development, and software portability.

Specifications for AML-S905D3-CC-4GB

• CPU: 4 E Cores

• GPU: 2 E Cores
• NPU: 1+1 Cores
• DRAM: 4GB LPDDR4 (2GB available for volume orders)
• USB Type C Power and 2.0 Data (Dual Role)
• 4 USB Type-A 3.0 (Hub)
• HDMI 2.0
• CVBS with Analog Stereo Audio 3.5mm Jack
• Gigabit Ethernet
• PoE Connector
• 40-Pin GPIO Connector
• IR Receiver Sensor
• DSI 4-Lane on 22-Pin Connector
• CSI 2-Lane on 22-Pin Connector
• 16MB SPI NOR
• eMMC 5.x Slim Connector
• MicroSD Card Slot with UHS SDR104
